Products
Drilling EDM

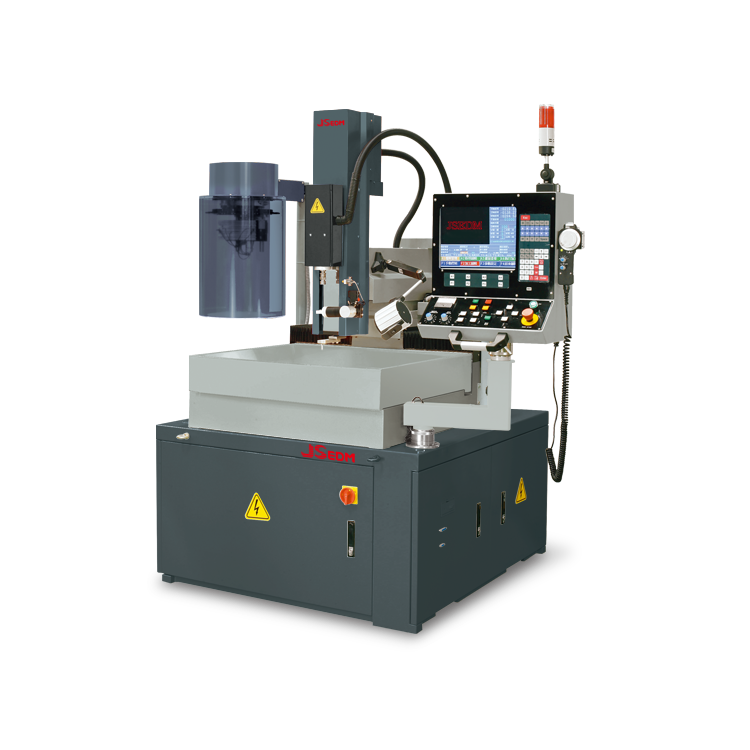

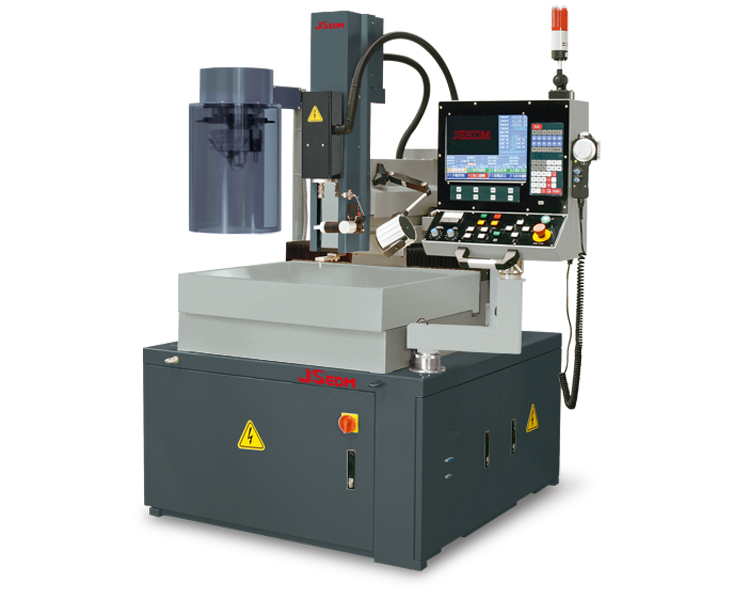

CNC-5040AT
ATC Series
-
Work Table Dimensions
600x490 mm
-
Max. Workpiece Weight
500 kgs
-
Max. Workpiece Dimensions
1185x740 mm
-
Dielectric
Water
-
Table Travel X, Y
500x400 mm
-
Capacity of Dielectric
100 Litres
-
Z Axis Travel
350 mm
-
Machine Weight (NW / GW)
2100 / 2300 kg
-
Ram Servo Travel
350 mm
-
Packing Dimensions
2300x1800x2240 mm
-
Max. Length of Electrode
400 mm
-
Machine Structure
Traveling Head
-
Electrode Diameter
0.2~3.0 mm
CNC-5060AT
ATC Series
-
Work Table Dimensions
600x700 mm
-
Max. Workpiece Weight
500 kgs
-
Max. Workpiece Dimensions
800x1120 mm
-
Dielectric
Water
-
Table Travel X, Y
500x600 mm
-
Capacity of Dielectric
100 Litres
-
Z Axis Travel
350 mm
-
Machine Weight (NW / GW)
2300 / 2500 kg
-
Ram Servo Travel
350 mm
-
Packing Dimensions
1900x1700x2400 mm
-
Max. Length of Electrode
400 mm
-
Machine Structure
Double Column
-
Electrode Diameter
0.2~3.0 mm
CNC-4030AT
ATC Series
-
Work Table Dimensions
515x390 mm
-
Max. Workpiece Weight
500 kgs
-
Max. Workpiece Dimensions
975x740 mm
-
Dielectric
Water
-
Table Travel X, Y
400x300 mm
-
Capacity of Dielectric
100 Litres
-
Z Axis Travel
350 mm
-
Machine Weight (NW / GW)
2000 / 2200 kg
-
Ram Servo Travel
350 mm
-
Packing Dimensions
2300x1800x2240 mm
-
Max. Length of Electrode
400 mm
-
Machine Structure
Traveling Head
-
Electrode Diameter
0.2~3.0 mm
CNC-D2535AT
ATC Series
-
Work Table Dimensions
500x300 mm
-
Max. Workpiece Weight
150 kgs
-
Max. Workpiece Dimensions
990x490 mm
-
Dielectric
Water
-
Table Travel X, Y
350x250 mm
-
Capacity of Dielectric
100 Litres
-
Z Axis Travel
350 mm
-
Machine Weight (NW / GW)
1000 / 1200 kg
-
Ram Servo Travel
150 mm
-
Packing Dimensions
1800x1500x2240 mm
-
Max. Length of Electrode
400 mm
-
Machine Structure
C-Type
-
Electrode Diameter
0.2~3.0 mm
CNC-5040A
CNC Series
-
Work Table Dimensions
600x490 mm
-
Max. Workpiece Weight
500 kgs
-
Max. Workpiece Dimensions
1185x740 mm
-
Dielectric
Water
-
Table Travel X, Y
500x400 mm
-
Capacity of Dielectric
100 Litres
-
Z Axis Travel
350 mm
-
Machine Weight (NW / GW)
2000 / 2200 kg
-
Ram Servo Travel
350 mm
-
Packing Dimensions
1500x1800x2240 mm
-
Max. Length of Electrode
400 mm
-
Machine Structure
Traveling Head
-
Electrode Diameter
0.2~3.0 mm
CNC-5060A
CNC Series
-
Work Table Dimensions
600x700 mm
-
Max. Workpiece Weight
500 kgs
-
Max. Workpiece Dimensions
800x1120 mm
-
Dielectric
Water
-
Table Travel X, Y
500x600 mm
-
Capacity of Dielectric
100 Litres
-
Z Axis Travel
350 mm
-
Machine Weight (NW / GW)
2200 / 2400 kg
-
Ram Servo Travel
350 mm
-
Packing Dimensions
1900x1700x2400 mm
-
Max. Length of Electrode
400 mm
-
Machine Structure
Double Column
-
Electrode Diameter
0.2~3.0 mm
CNC-4030A
CNC Series
-
Work Table Dimensions
510x390 mm
-
Max. Workpiece Weight
500 kgs
-
Max. Workpiece Dimensions
975x740 mm
-
Dielectric
Water
-
Table Travel X, Y
400x300 mm
-
Capacity of Dielectric
100 Litres
-
Z Axis Travel
350 mm
-
Machine Weight (NW / GW)
1900 / 2100 kg
-
Ram Servo Travel
350 mm
-
Packing Dimensions
1500x1800x2240 mm
-
Max. Length of Electrode
400 mm
-
Machine Structure
Traveling Head
-
Electrode Diameter
0.2~3.0 mm
CNC-D2535A
CNC Series
-
Work Table Dimensions
500x300 mm
-
Max. Workpiece Weight
150 kgs
-
Max. Workpiece Dimensions
990x490 mm
-
Dielectric
Water
-
Table Travel X, Y
350x250 mm
-
Capacity of Dielectric
20 Litres
-
Z Axis Travel
350 mm
-
Machine Weight (NW / GW)
900 / 1000 kg
-
Ram Servo Travel
350 mm
-
Packing Dimensions
1300x1500x2240 mm
-
Max. Length of Electrode
400 mm
-
Machine Structure
C-Type
-
Electrode Diameter
0.2~3.0 mm
CNC-D2535
CNC Series
-
Work Table Dimensions
500x300 mm
-
Max. Workpiece Weight
150 kgs
-
Max. Workpiece Dimensions
990x490 mm
-
Dielectric
Water
-
Table Travel X, Y
350x250 mm
-
Capacity of Dielectric
20 Litres
-
Z Axis Travel
350 mm
-
Machine Weight (NW / GW)
850 / 950 kg
-
Ram Servo Travel
150 mm
-
Packing Dimensions
1300x1500x2240 mm
-
Max. Length of Electrode
400 mm
-
Machine Structure
C-Type
-
Electrode Diameter
0.2~3.0 mm
AD-40A
Manual Series
-
Work Table Dimensions
600x300 mm
-
Electrode Diameter
0.2~3.0 mm
-
Max. Workpiece Dimensions
1000x500 mm
-
Max. Workpiece Weight
300 kgs
-
Table Travel X, Y
450x350 mm
-
Dielectric
Water
-
Z Axis Travel
350 mm
-
Capacity of Dielectric
20 Litres
-
Ram Servo Travel
350 mm
-
Machine Weight (NW / GW)
1000 / 1100 kg
-
Max. Length of Electrode
400 mm
-
Packing Dimensions
1450x1450x2240 mm
AD-30A
Manual Series
-
Work Table Dimensions
500x300 mm
-
Electrode Diameter
0.2~3.0 mm
-
Max. Workpiece Dimensions
875x470 mm
-
Max. Workpiece Weight
150 kgs
-
Table Travel X, Y
350x250 mm
-
Dielectric
Water
-
Z Axis Travel
350 mm
-
Capacity of Dielectric
20 Litres
-
Ram Servo Travel
350 mm
-
Machine Weight (NW / GW)
800 / 900 kg
-
Max. Length of Electrode
400 mm
-
Packing Dimensions
1240x1210x2240 mm
AD-20A
Manual Series
-
Work Table Dimensions
500x300 mm
-
Electrode Diameter
0.2~3.0 mm
-
Max. Workpiece Dimensions
875x470 mm
-
Max. Workpiece Weight
150 kgs
-
Table Travel X, Y
350x250 mm
-
Dielectric
Water
-
Z Axis Travel
350 mm
-
Capacity of Dielectric
20 Litres
-
Ram Servo Travel
150 mm
-
Machine Weight (NW / GW)
750 / 850 kg
-
Max. Length of Electrode
400 mm
-
Packing Dimensions
1240x1210x2240 mm
AD-30
Manual Series
-
Work Table Dimensions
460x210 mm
-
Electrode Diameter
0.2~3.0 mm
-
Max. Workpiece Dimensions
630x420 mm
-
Max. Workpiece Weight
80 kgs
-
Table Travel X, Y
300x200 mm
-
Dielectric
Water
-
Z Axis Travel
350 mm
-
Capacity of Dielectric
20 Litres
-
Ram Servo Travel
330 mm
-
Machine Weight (NW / GW)
550 / 650 kg
-
Max. Length of Electrode
400 mm
-
Packing Dimensions
1240x1210x2240 mm
AD-20
Manual Series
-
Work Table Dimensions
460x210 mm
-
Electrode Diameter
0.2~3.0 mm
-
Max. Workpiece Dimensions
630x420 mm
-
Max. Workpiece Weight
80 kgs
-
Table Travel X, Y
300x200 mm
-
Dielectric
Water
-
Z Axis Travel
350 mm
-
Capacity of Dielectric
20 Litres
-
Ram Servo Travel
150 mm
-
Machine Weight (NW / GW)
500 / 600 kg
-
Max. Length of Electrode
400 mm
-
Packing Dimensions
1240x1210x2240 mm

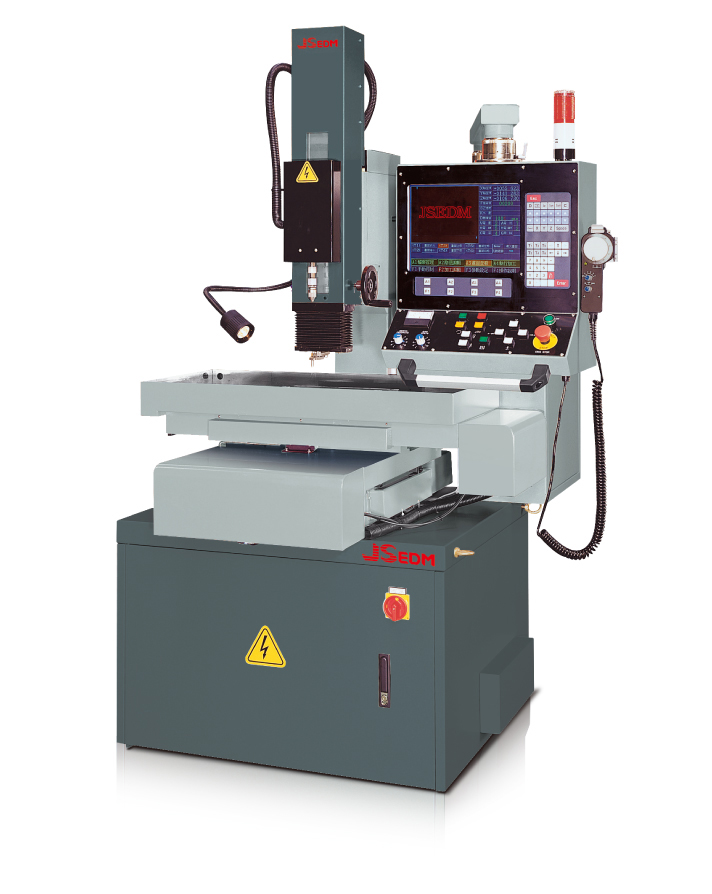

CNC Drilling EDM ,Fast - Stable - Accurate, Conversational Interface

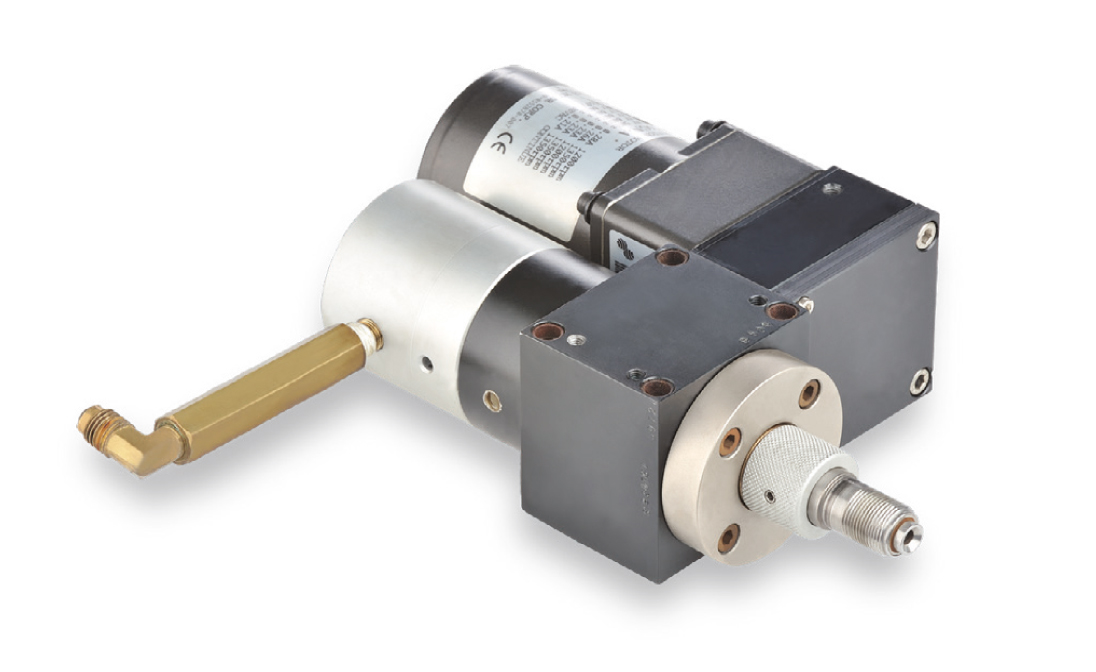

Spindle
CNC Series | 5040A | 5060A | D4030A | D2535A | D2335
- Precision servo motors on X, Y, Z axis. The design provides excellent stability during drilling.
- Provides 1mkm optical scale, linear slideway and ballscrew to ensure accurate movement.
- Reads NC program, G-code and DXF files directly. Finds the cutting start point automatically and begins the fine hole drilling process.
- When NC program is not available, the machining coordination can be inputted directly.
- Automatic centering, edging and internal diameter detection.
- Coordinates can rotate to any angle.
- Drilling capacity from 0.2mm to 3.0mm.Brass or copper electrodes available.
- Mirror image function.

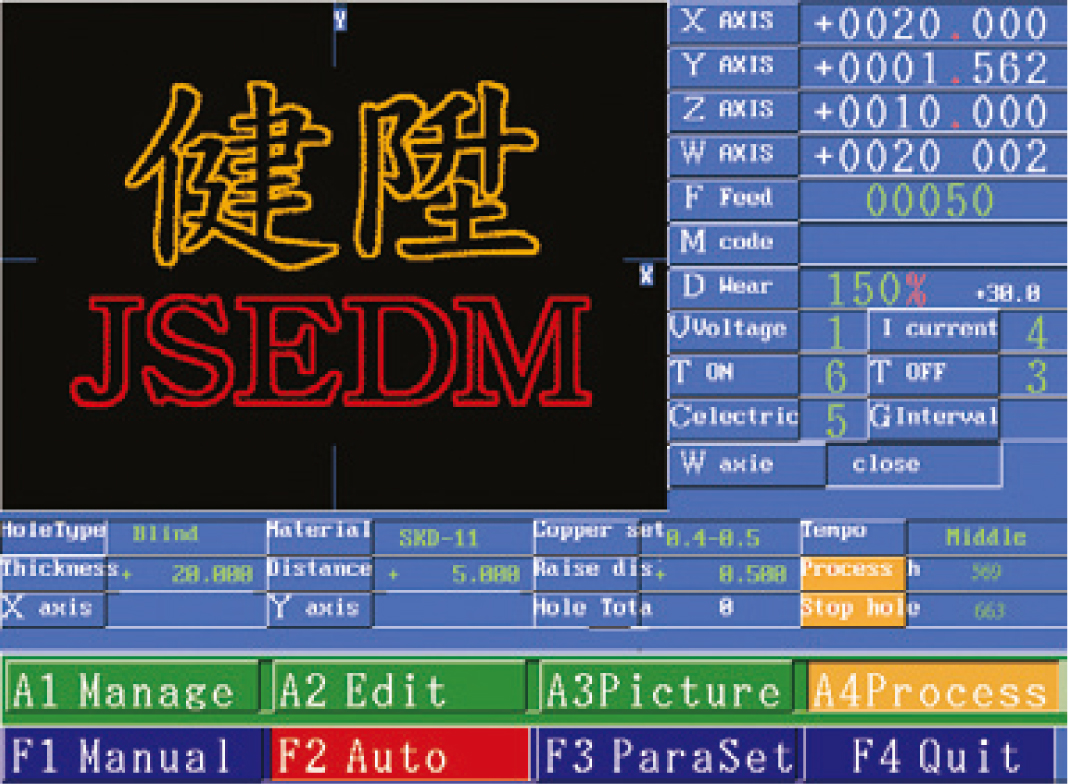

- Automatically illustrates the path of current andnext drilling position with colors.
- Z-axis auto reset and depth calculation.(Z-axis checks hole depth automatically, and returns to complete any that is too shallow.)
- Data input by USB or network transfer.
- Simple and user-friendly interface.

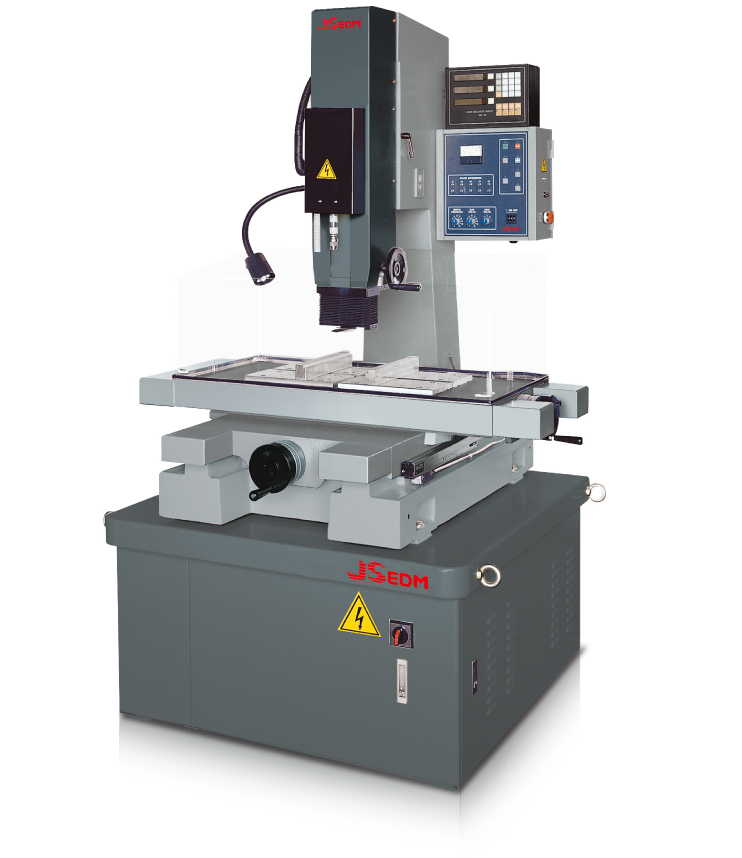

Manual Drilling EDM, With ZNC Function

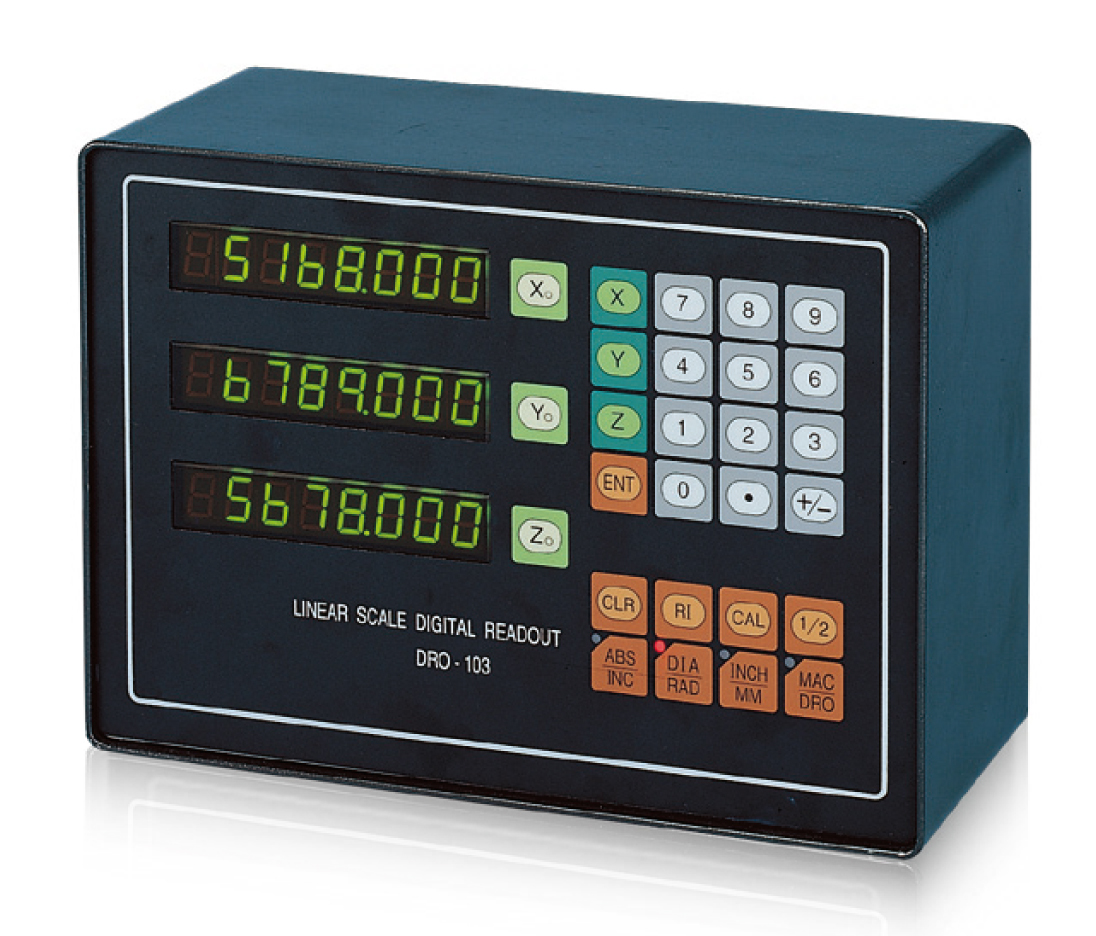

3 Axes D.R.O. Set the depth that you need to drill.

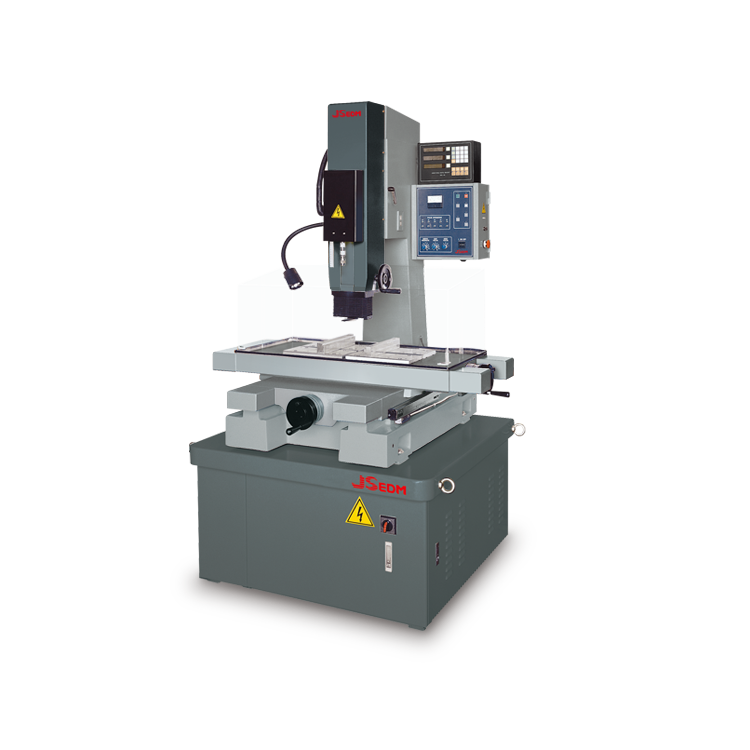

Manual Series | AD-40A | AD-30A | AD-30 | AD-20A | AD-20
- Precision servo motor control for stable drilling.
- Designed for drilling hardened tool steel,carbides and other conductive materials.
- Suitable for larger workpieces and plastic molds.
- Drilling capacity from 0.2mm to 3.0mm.Brass or copper electrodes available.
- Automatic pressure release function.
- Long life work table made of stainless steel.
Processing Setting

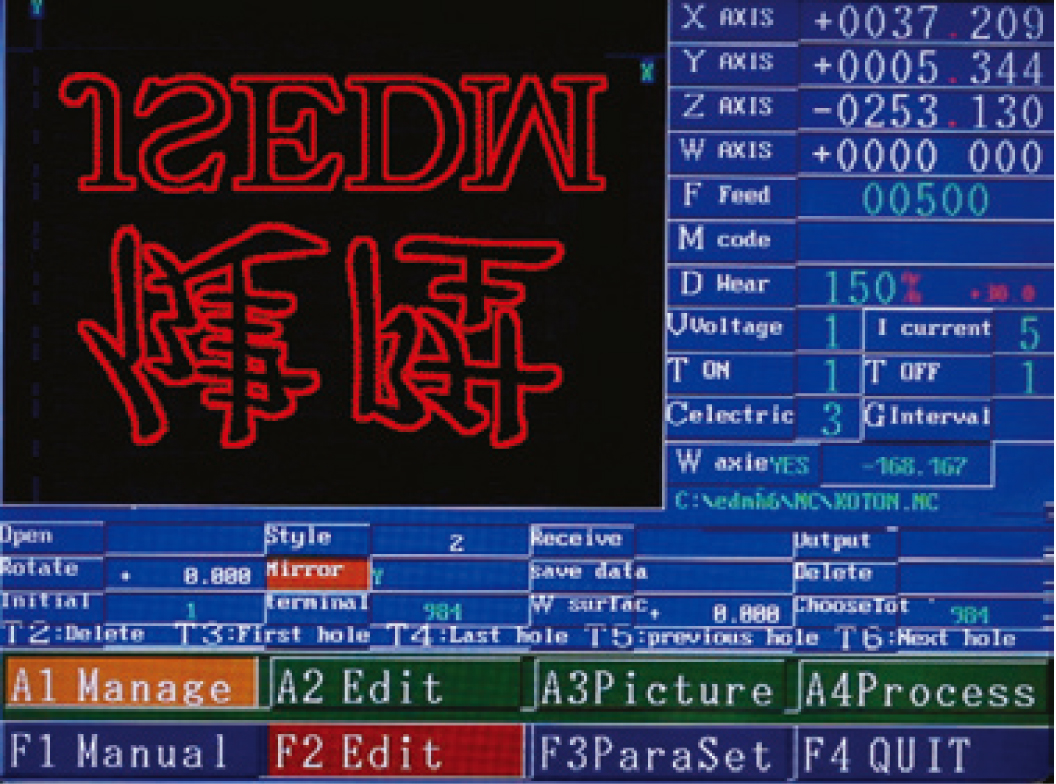

Mirror Function
- You can choose any axis you want to mirror.It’s easy to read from the screen.
Functional Set Up
- You can set up the starting hole and stop hole Different color has different meaning.
Optional Accessories

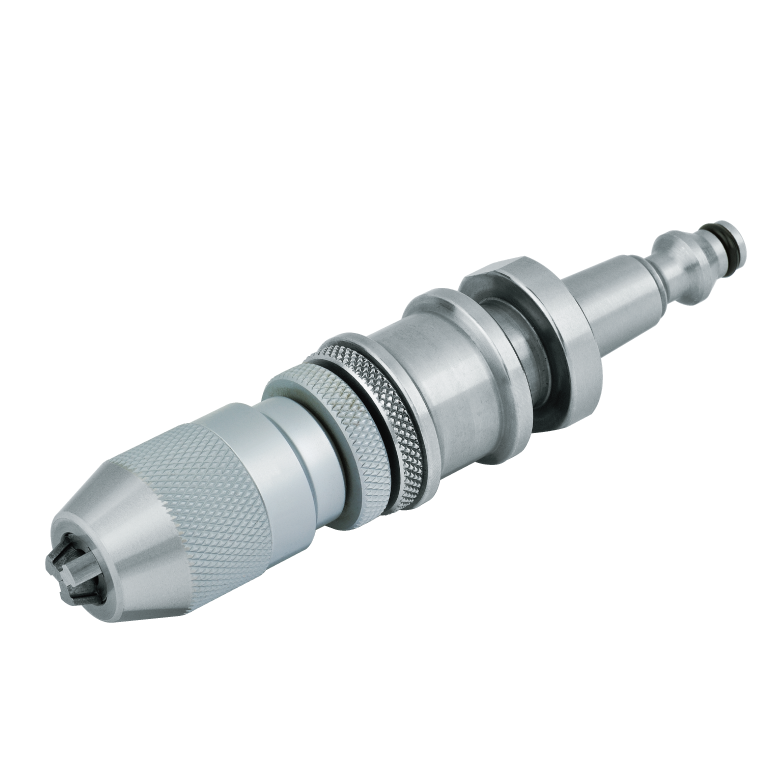

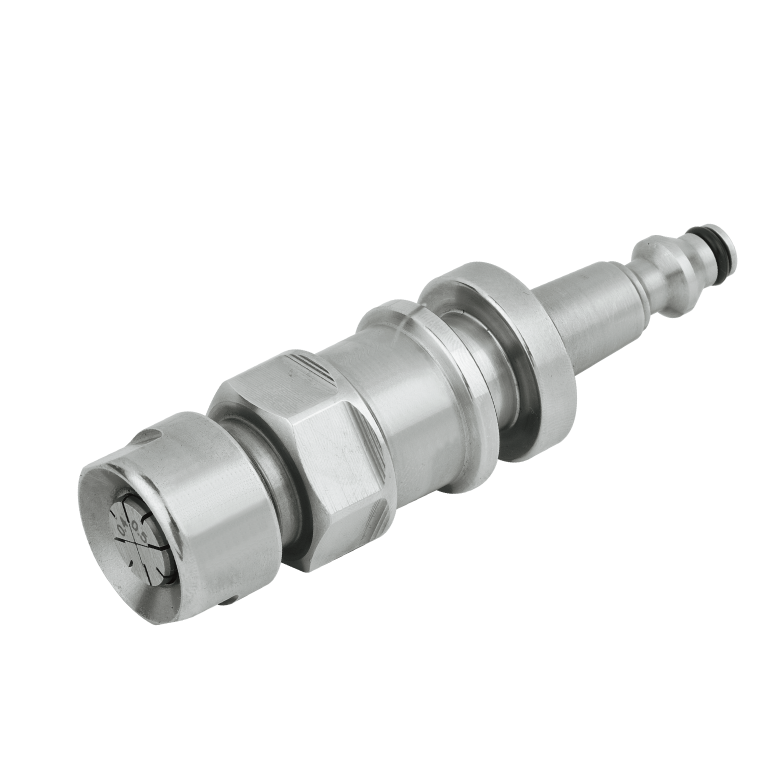

ATC Precision Tool Holder
ATC Collet Holder

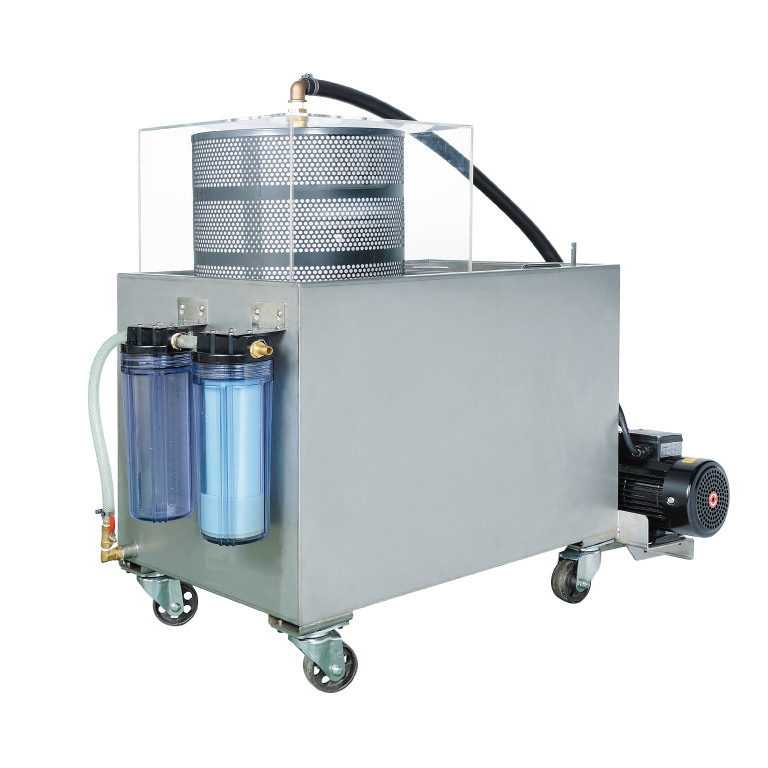

Filtration Water Tank

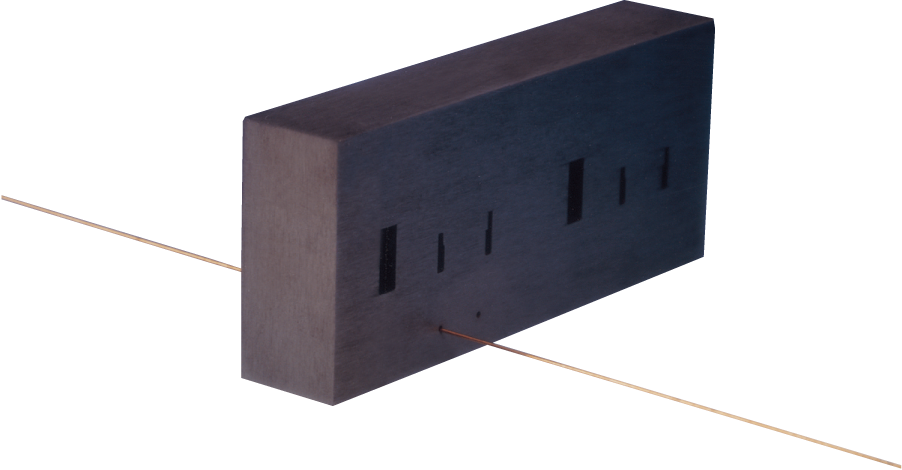

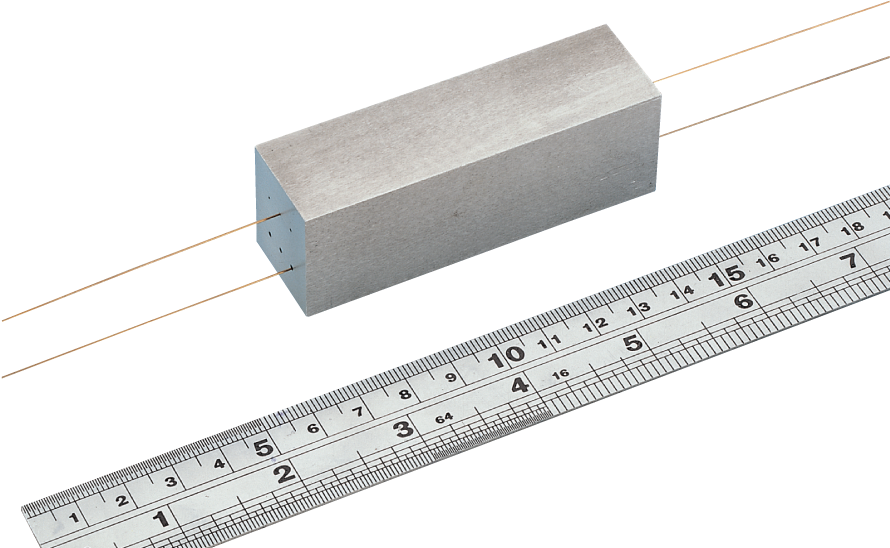

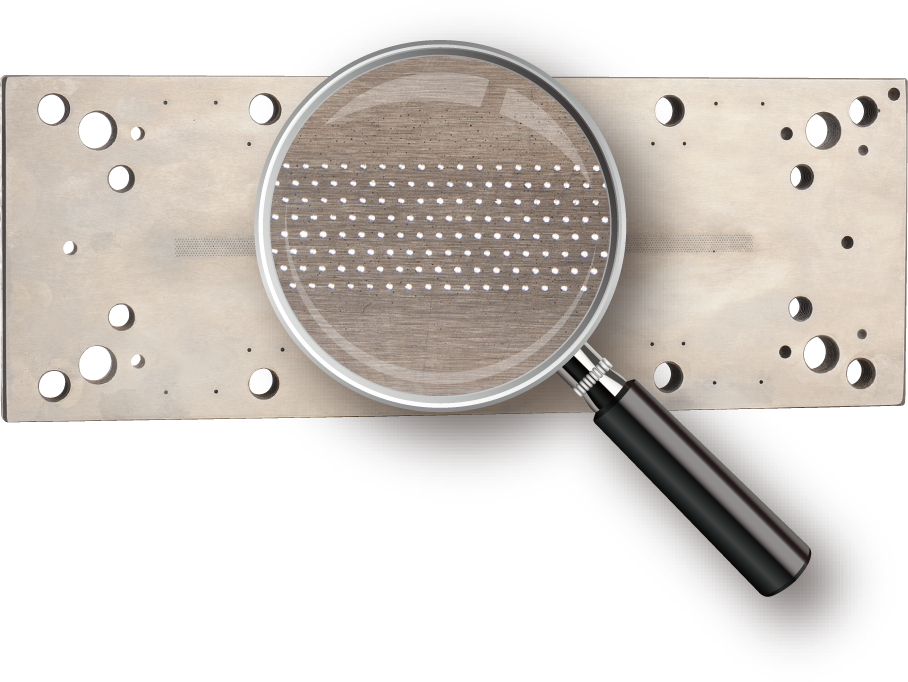

Machining Samples
Material
Aluminum
Thickness
80 mm
Diameter
0.5 mm
Material
Tungsten Steel
Thickness
20 mm
Diameter
0.5 mm
Before
Material
SKD-11
Thickness
5 mm
Diameter
0.15 mm

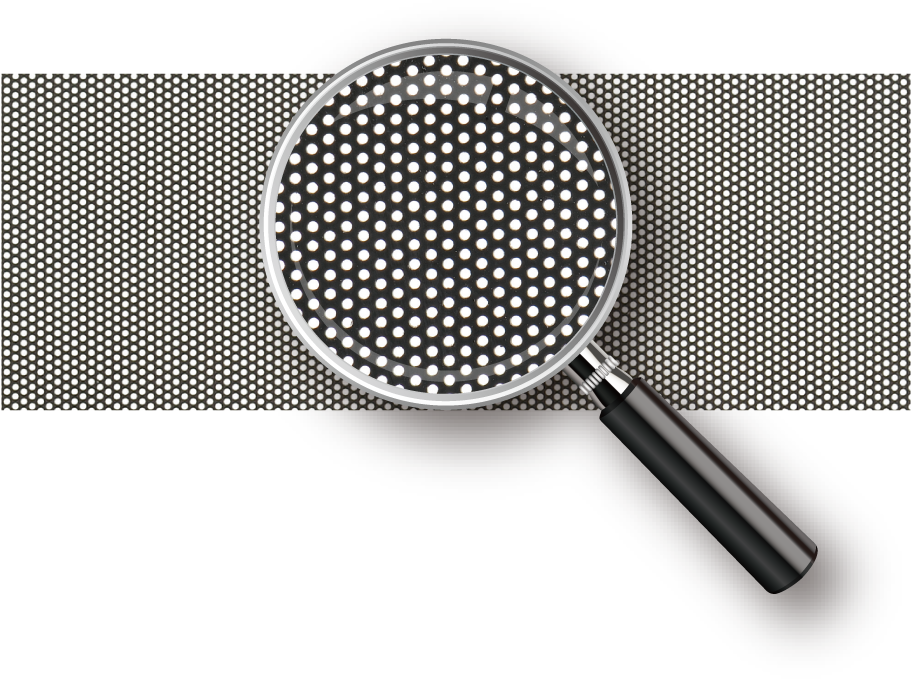

After (Speaker Grille)
Diameter
0.3 mm
